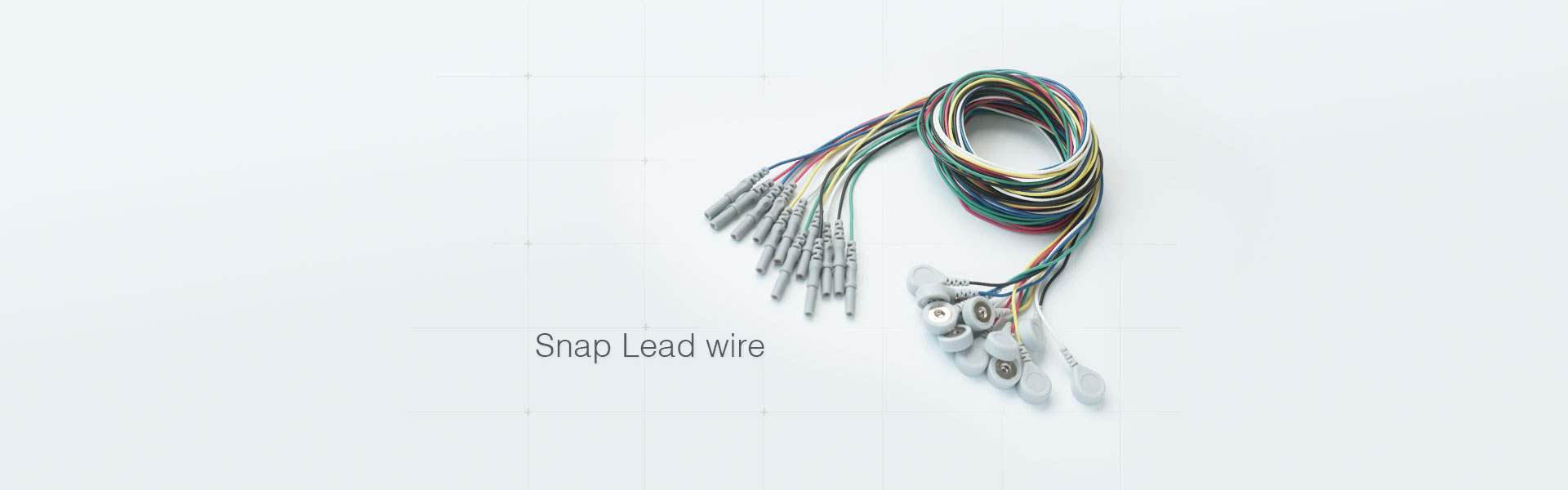

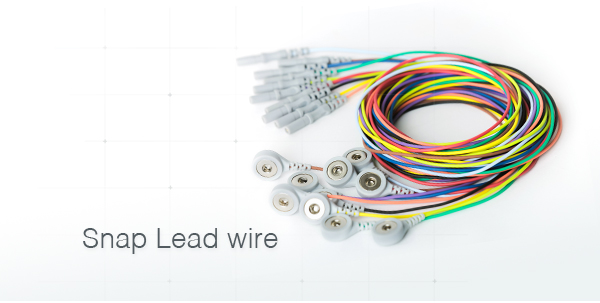

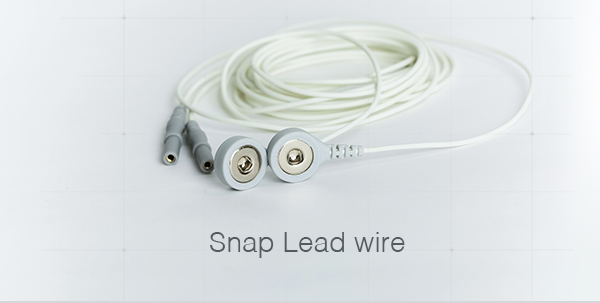

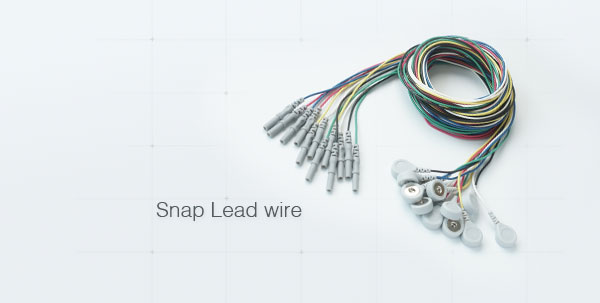

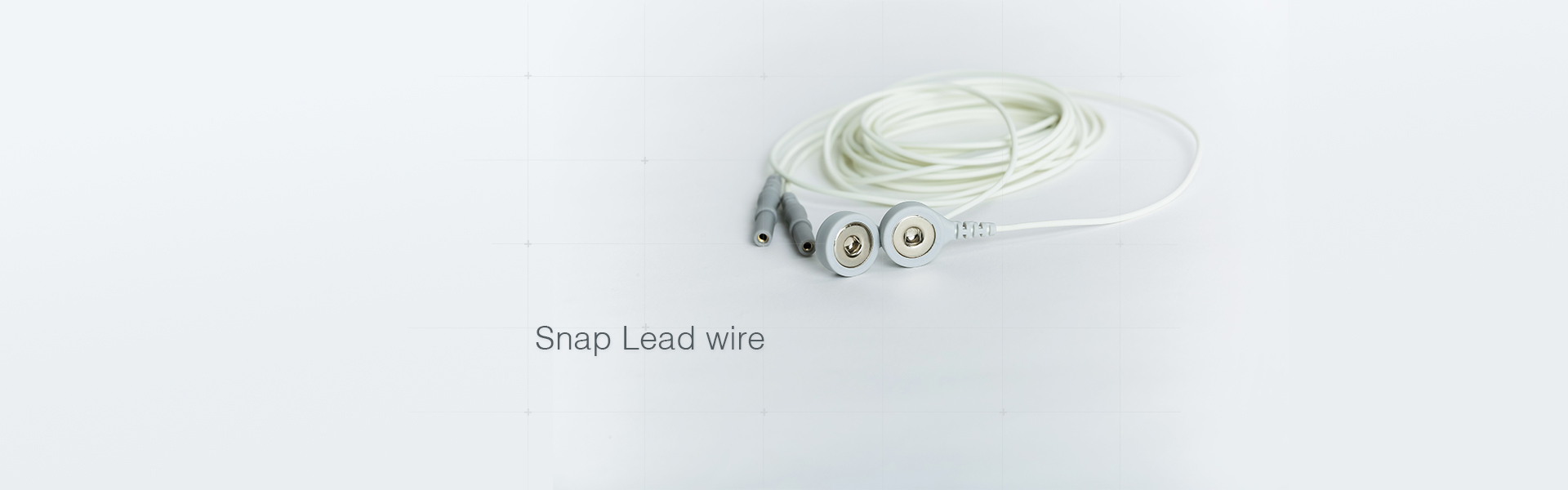

Greentek Snap Lead Wire, equipped with 4 mm ‘snapconnector-on’ s, is for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes. Each lead wire terminates in a 1.5mm safety touch proof connector, and a variety of lead lengths are available.
Greentek Snap Lead Wire, equipped with 4 mm ‘snapconnector-on’ s, is for use with Disposable ECG Electrodes, Reusable ECG Electrodes and Chest ECG Electrodes. Each lead wire terminates in a 1.5mm safety touch proof connector, and a variety of lead lengths are available.

Specifications

Specifications

Product Name Greentek Snap Lead Wire
Application ECG
Electrode Material Cupper plated Tin
Electrode Diameter 4 mm ‘snap-on’ connector
Insulation materials Medical Grade TPU
Lead wire Core Kevlar and Silver plated Copper
Cable Length 1.5m & 2.0m & 2.5m & OEM
Connector 1.5mm female DIN42802 connector (touchproof )
Cable Color 12 Colors
Packaging 12 pcs / PE Bag
Certificate CFDA, ISO 13485, CE
Place of Origin China

Product Name Greentek Snap Lead Wire
Application ECG
Electrode Material Cupper plated Tin
Electrode Diameter 4 mm ‘snap-on’ connector
Insulation materials Medical Grade TPU
Lead wire Core Kevlar and Silver plated Copper
Cable Length 1.5m & 2.0m & 2.5m & OEM
Connector 1.5mm female DIN42802 connector (touchproof )
Cable Color 12 Colors
Packaging 12 pcs / PE Bag
Certificate CFDA, ISO 13485, CE
Place of Origin China
