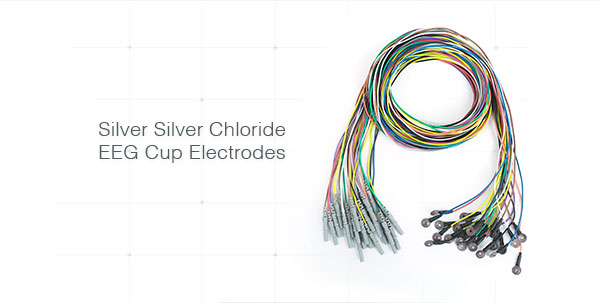

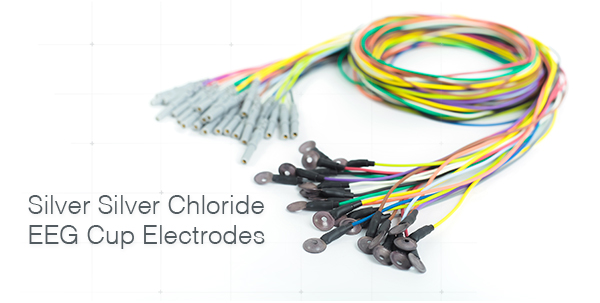

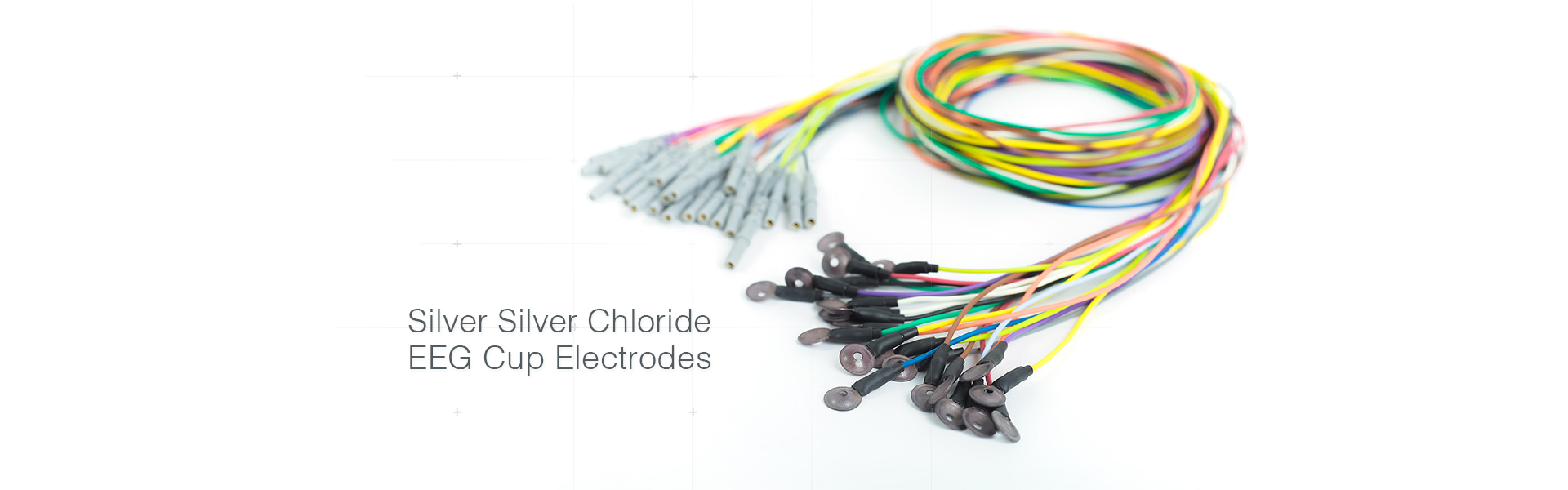

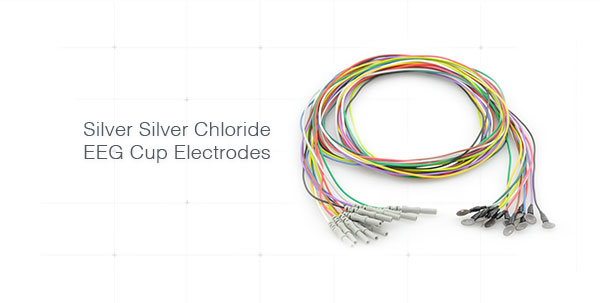

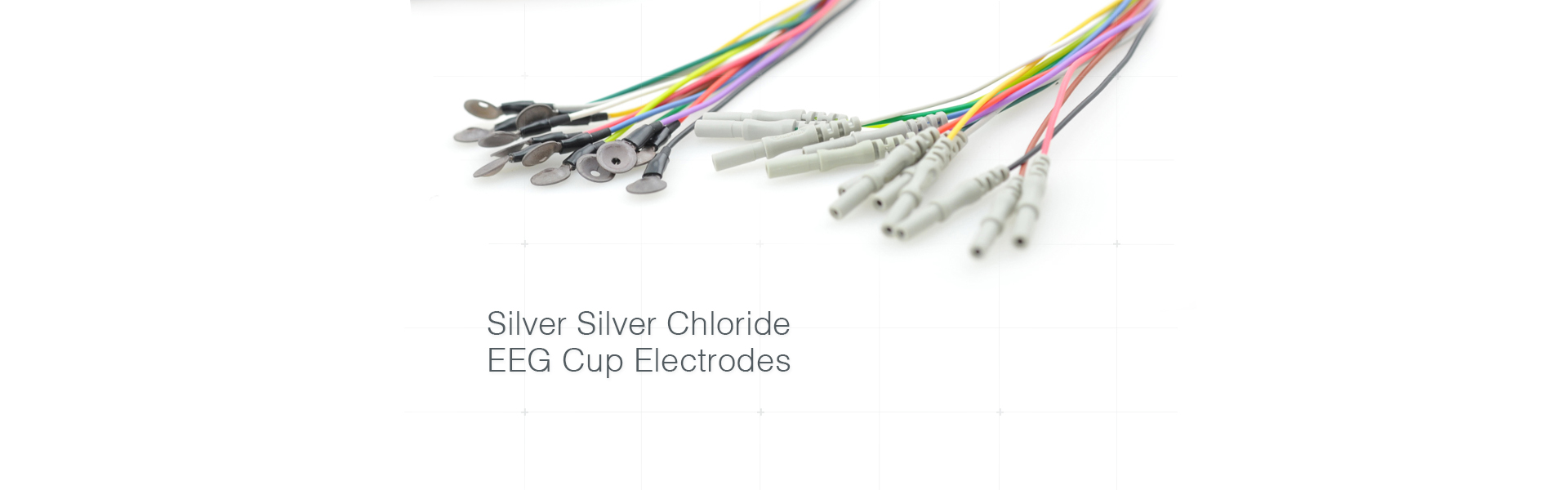

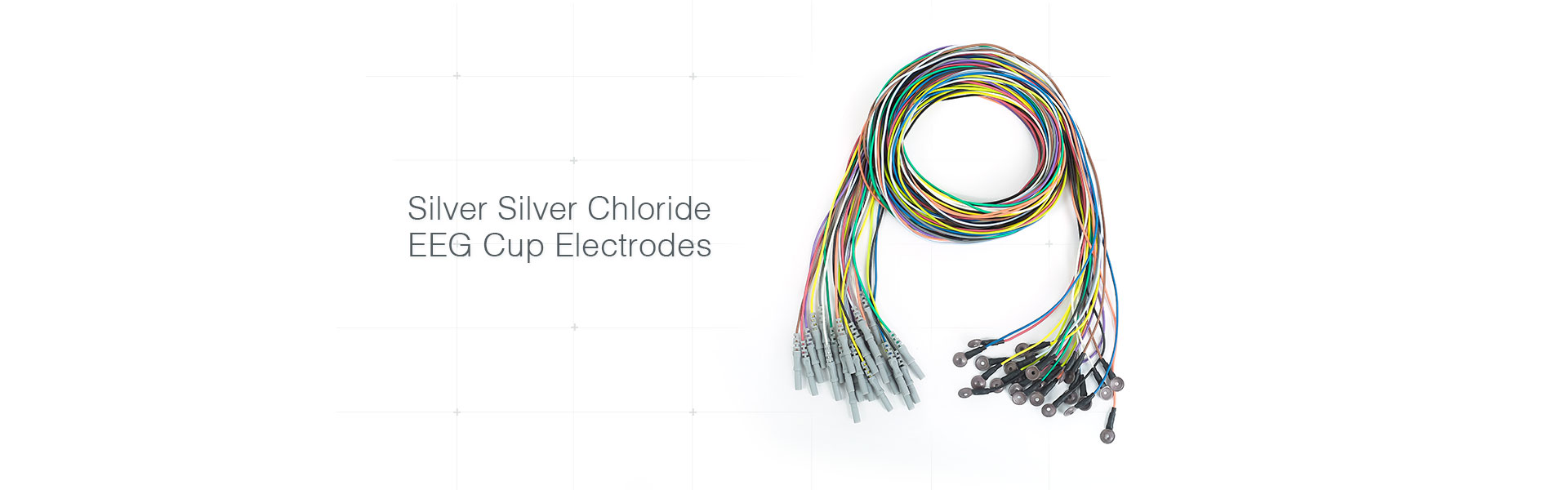

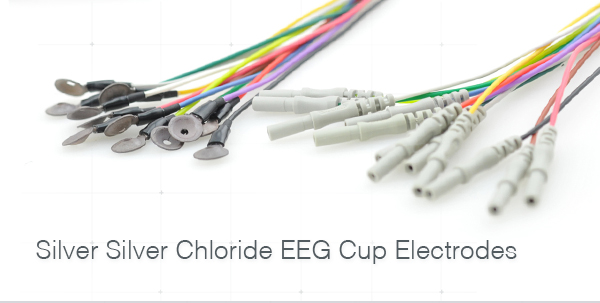

Reusable high quality pure silver coated with silver chloride (AgCl) EEG cup electrodes designed to provide effectiveness, ease of use and reliable signals every time.

Greentek’s reusable EEG disc electrodes have a 10 mm silver disc coated with silver chloride (AgCl). They have a multi-colored super-flexible TPU insulated lead wire ending in standard 1.5mm touch proof connectors conforming to DIN 42 802.

Silver / silver chloride electrodes (Ag/AgCI- electrodes) are not polarizable. Ag/AgCI- electrodes are chloride coated pure silver to provide stability and low noise. It has a low resistance in low frequencies, and the result is superior quality that assures reliable, accurate EEG, EMG, ECG and EOG recordings.

Greentek standard reusable Ag/AgCl Cup EEG electrodes are available in the following lengths: 1.0, 1.5, 2.0 and 2.5 meters.

Reusable high quality pure silver coated with Silver Chloride (AgCl) EEG cup electrodes designed to provide effectiveness, ease of use and reliable signals every time.

Greentek’s reusable EEG disc electrodes have a 10 mm silver disc coated with Silver Chloride (AgCl). They have a multi-colored super-flexible TPU insulated lead wire ending in standard 1.5mm touch proof connectors conforming to DIN 42 802.

Silver / silver chloride electrodes (Ag/AgCI- electrodes) are not polarizable. Ag/AgCI- electrodes are chloride coated pure silver to provide stability and low noise. It has a low resistance in low frequencies, and the result is superior quality that assures reliable, accurate EEG, EMG, ECG and EOG recordings.

Greentek standard reusable Ag/AgCl Cup EEG Electrodes are available in the following lengths: 1, 1.5, 2 and 2.5 meters..

Specifications

Specifications

Product Name Greentek Silver Silver Chloride EEG Cup Electrodes
Application EEG, EMG, EOG, PSG, ERP …
Electrode Material Pure silver (99.9%) substrate plated silver chloride
Electrode Diameter 10.0 mm, with 2.0 mm hole for application of electrode cream or gel
Insulation materials Medical grade TPU
Lead wire Core Kevlar and silver plated copper
Cable Length 1.5m & 2.0m & 2.5m & OEM
Connector 1.5mm female DIN42802 connector (touchproof )
Cable Color 12 Colors
Packaging 12 pcs / PE Bag
Certificate CFDA, ISO 13485, CE
Place of Origin China
Place of Origin * Advanced silver/silver chloride sensor ensures uniform high signal quality
* Pre-attached tangle-free lead wires
* Color coded lead wires for easy handling
* Reusable and non-toxic, can be reused after sterilized

Product Name Greentek Silver Silver Chloride EEG Cup Electrodes
Application EEG, EMG, EOG, PSG, ERP …
Electrode Material Pure silver (99.9%) substrate plated Silver Chloride
Electrode Diameter 10.0 mm, with 2 mm hole for application of electrode cream or gel
Insulation materials Medical Grade TPU
Lead wire Core Kevlar and Silver plated Copper
Cable Length 1.5m & 2.0m & 2.5m & OEM
Connector 1.5mm female DIN42802 connector (touchproof )
Cable Color 12 Colors
Packaging 12 pcs / PE Bag
Certificate CFDA, ISO 13485, CE
Place of Origin China
Features * Advanced silver/silver chloride sensor ensures uniform high signal quality
* Pre-attached tangle-free lead wires
* Color coded lead wires for easy handling
* Reusable and non-toxic,can be reused after sterilized
