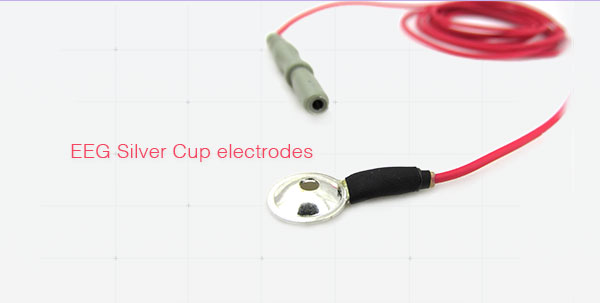

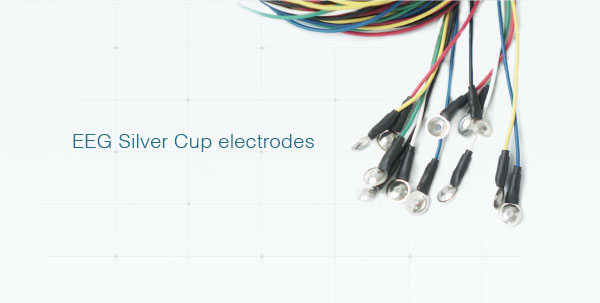

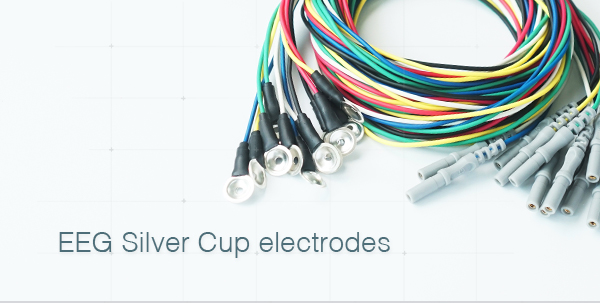

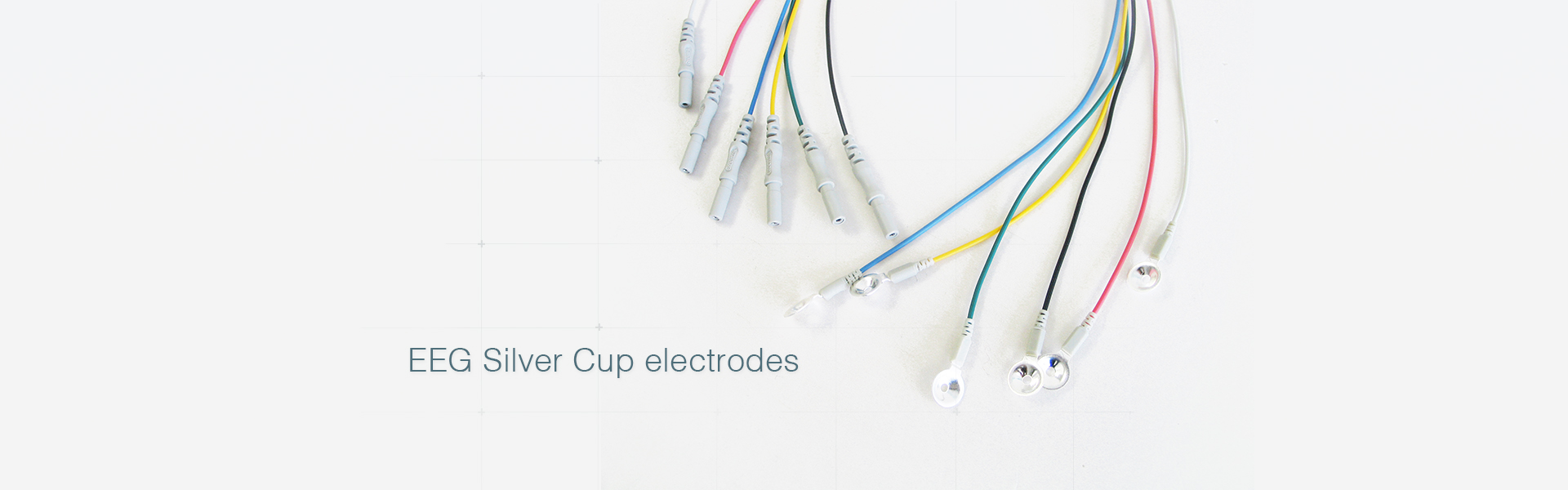

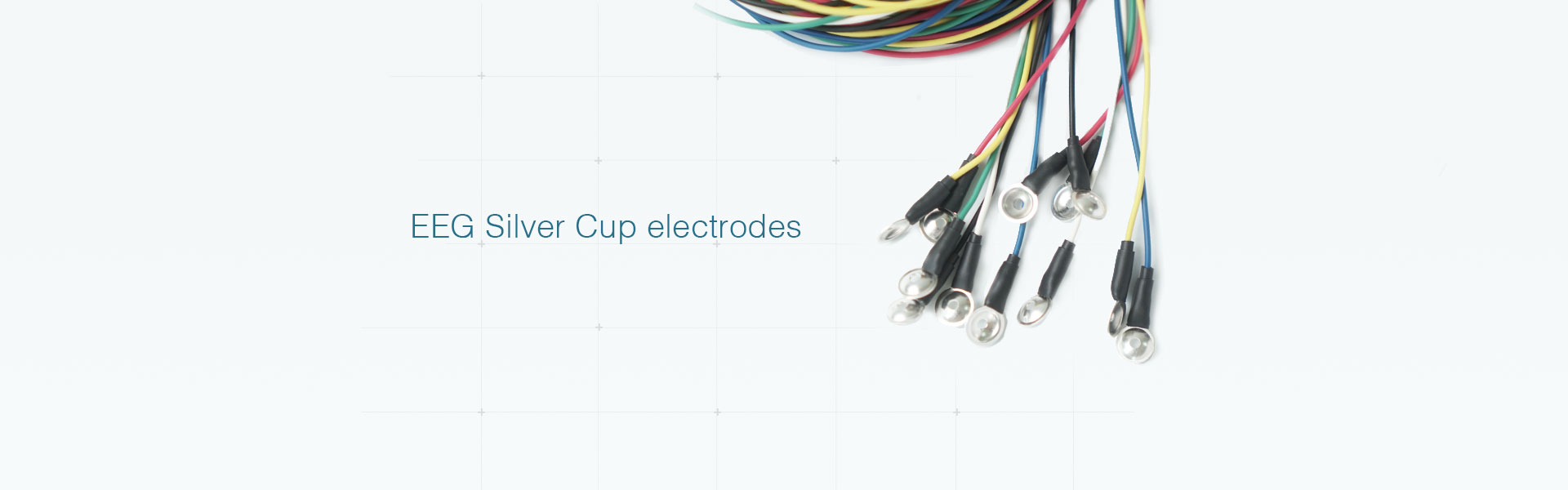

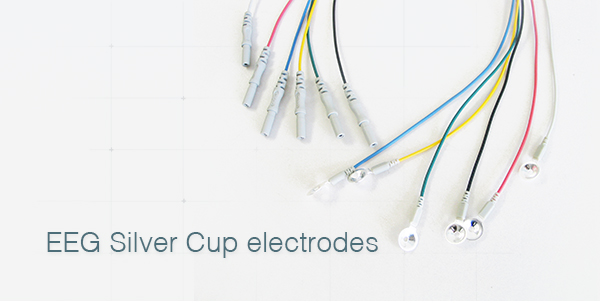

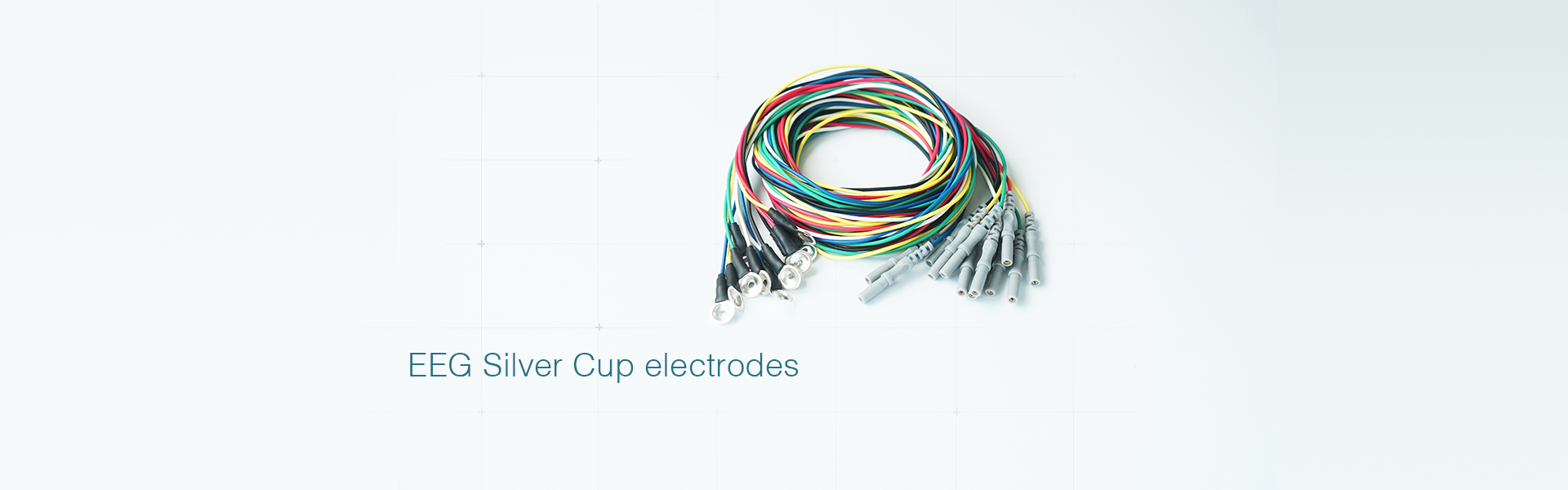

Greentek reusable pure silver EEG cup electrode sensors are solid cast pure silver (99.99%), and terminated with a 1.5mm DIN Touch Proof plug conforming to DIN 42 802 standard. Lead wires approximately (150cm) in length.

Greentek pure silver EEG cup electrodes are widely used because of their high quality and a lot of positive feedbacks after many years of application. In addition to a long life, Greentek pure silver EEG cup electrodes provide a stable and reliable recording during sleep monitoring, PSG and EEG examinations.

The special designed safety plugs offer more space between safety plugs even at narrowly placed sockets and a better fit also with wider (worn out) sockets at some head boxes

Greentek reusable pure silver EEG cup Electrode sensors are solid cast pure silver (99.99%), and terminated with a 1.5mm DIN Touch Proof plug conforming to DIN 42 802 standard. Lead wires approximately (150cm) in length.

Greentek Pure silver EEG cup Electrodes are widely used because of their high quality and a lot of positive feedbacks after many years of application. In addition to a long life, Greentek Pure silver EEG cup Electrodes provide a stable and reliable recording during sleep monitoring, PSG and EEG examinations.

The special designed safety plugs offer more space between safety plugs even at narrowly placed sockets and a better fit also with wider (worn out) sockets at some head boxes

Specifications

Specifications

Product Name Greentek silver EEG cup electrodes
Application EEG, EMG, EOG, PSG, ERP …
Electrode Material Pure silver (99.99%)
Electrode Diameter 10.0 mm, with 2.0 mm hole for application of electrode cream or gel
Insulation materials Medical grade TPU
Lead wire Core Kevlar and silver plated copper
Cable Length 1.5m & 2.0m & 2.5m & OEM
Connector 1.5mm female DIN42802 connector (touchproof )
Cable Color 12 Colors
Packaging 12 pcs / PE Bag
Certificate CFDA, ISO 13485, CE
Place of Origin China
Place of Origin * Better performance, quality material makes the good product
* Durable and stable
* Low offset voltage, Low noise, the impedance is below 5k Ohm
* Reusable and non-toxic,can be reused after sterilized

Product Name Greentek Silver EEG Cup electrodes
Application EEG, EMG, EOG, PSG, ERP …
Electrode Material Pure Silver (99.99%)
Electrode Diameter 10.0 mm, with 2 mm hole for application of electrode cream or gel
Insulation materials Medical Grade TPU
Lead wire Core Kevlar and Silver plated Copper
Cable Length 1.5m & 2.0m & 2.5m & OEM
Connector 1.5mm female DIN42802 connector (touchproof )
Cable Color 12 Colors
Packaging 12 pcs / PE Bag
Certificate CFDA, ISO 13485, CE
Place of Origin China
Features * Better Performance, quality material make the good product
* Durable and stable
* Low offset voltage, Low noise, the impedance is below 5 k Ohm
* Reusable and non-toxic,can be reused after sterilized
