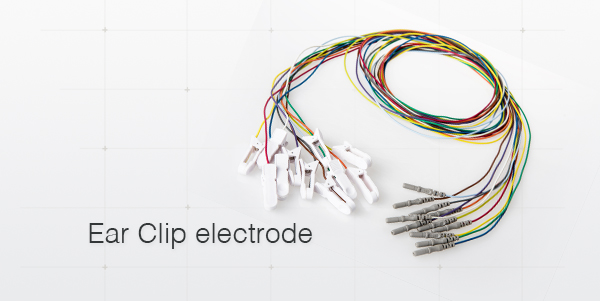

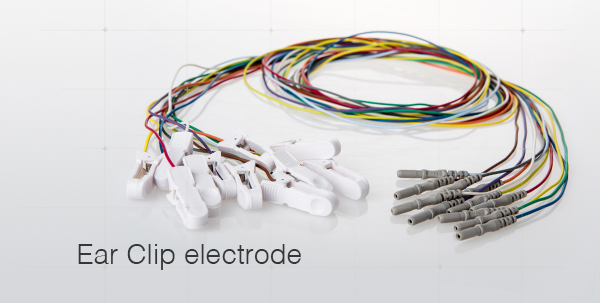

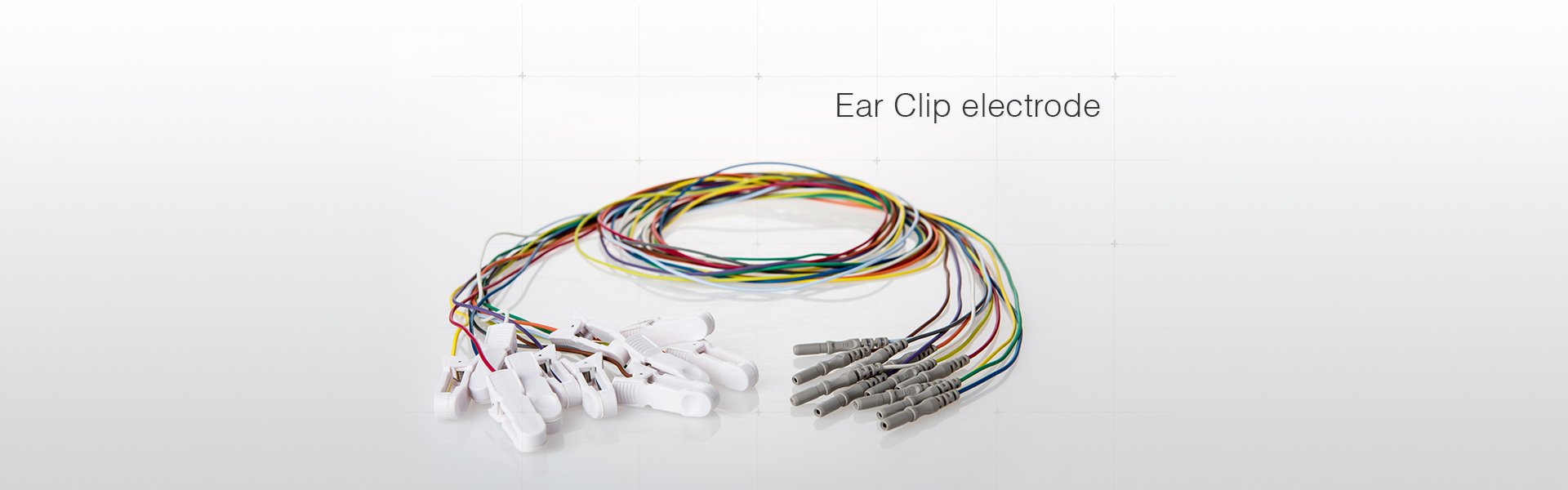

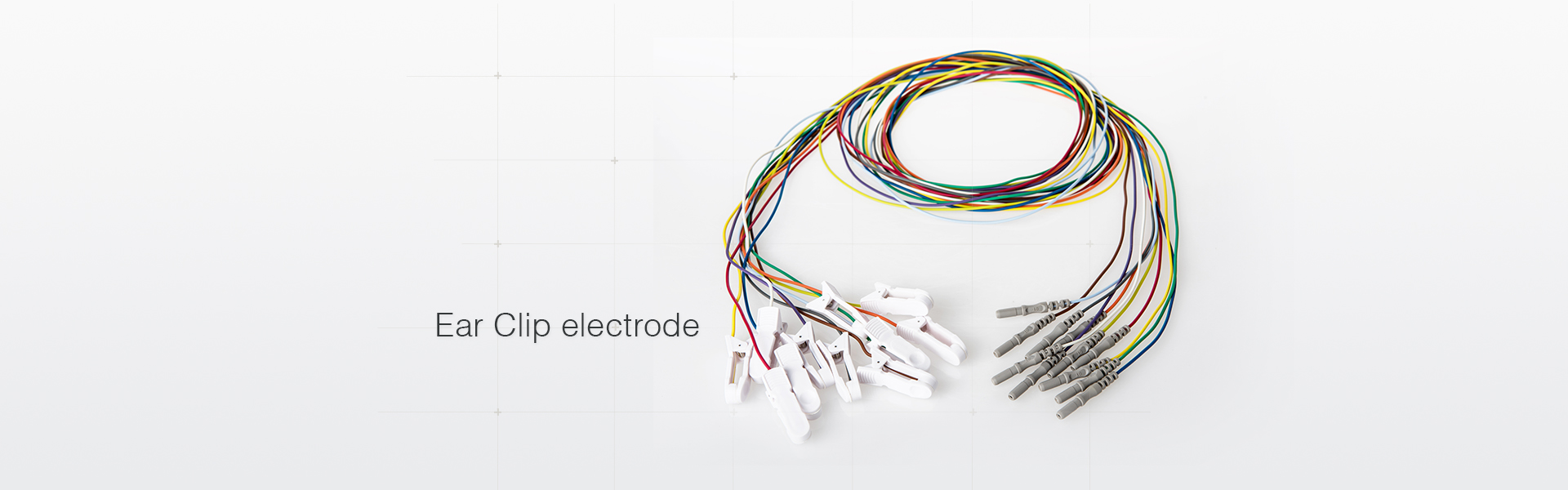

Reusable high quality pure silver coated with silver chloride (AgCl) EEG Ear Clip electrodes designed to provide effectiveness, ease of use and reliable signals every time.

Greentek Reusable Ear Clip electrodes have a 8 mm silver disc coated with silver chloride (AgCl). They have a multi-colored super-flexible TPU insulated lead wire ending in standard 1.5mm touch proof connectors conforming to DIN 42 802.

Silver – silver chloride electrodes (Ag-AgCI electrodes) are not polarizable. Ag/AgCI electrodes are chloride coated pure silver to provide stability and low noise. It has a low resistance in low frequencies, and the result is superior quality that assures reliable, accurate EEG, EMG, ECG and EOG recordings.

Greentek medical reusable Ag/AgCl Ear Clip electrodes are available in the length of 1.5m.

Reusable high quality pure silver coated with Silver Chloride (AgCl) EEG Ear Clip electrodes designed to provide effectiveness, ease of use and reliable signals every time.

Greentek Reusable Ear Clip electrodes have a 8 mm silver disc coated with Silver Chloride (AgCl). They have a multi-colored super-flexible TPU insulated lead wire ending in standard 1.5mm touch proof connectors conforming to DIN 42 802.

Silver – silver chloride electrodes (Ag-AgCI electrodes) are not polarizable. Ag/AgCI electrodes are chloride coated pure silver to provide stability and low noise. It has a low resistance in low frequencies, and the result is superior quality that assures reliable, accurate EEG, EMG, ECG and EOG recordings.

Greentek Medical reusable Ag/AgCl Ear Clips Electrodes are available in the following lengths: 1, 1.5, 2 and 2.5 meters..

Specifications

Specifications

Product Name Greentek Ear Clip electrode
Usage Reference electrode
Application EEG, PSG, ERP …
Electrode Material Pure silver plated silver chloride
Electrode Diameter 8.0 mm
Insulation materials Medical grade TPU
Lead wire Core Kevlar and silver plated copper
Cable Length 1.5m & OEM
Connector Din 42802 1.5mm
Cable Color 12 Colors
Packaging Sets of 2 x 6 ear clips in PE bags
Certificate CFDA, ISO 13485, CE
Place of Origin China
Features * Advanced silver/silver chloride sensor ensures uniform high signal quality
* Pre-attached tangle-free lead wires
* Color coded lead wires for easy handling
* Best comfort of the patient as well as the best connection with the ear lobe
Product Name Greentek Reusable Ear Clips
Usage Reference Electrode
Application EEG, PSG, ERP …
Electrode Material Pure silver plated silver chloride
Electrode Diameter 8.0 mm
Insulation materials Medical Grade TPU
Lead wire Core Kevlar and Silver plated Copper
Cable Length 1.5m & OEM
Connector Din 42802 1.5mm
Cable Color 12 Colors
Packaging Sets of 2 x 6 alligator clips in PE bags
Certificate CFDA, ISO 13485, CE
Place of Origin China
Features * Advanced silver/silver chloride sensor ensures uniform high signal quality
* Pre-attached tangle-free lead wires Color coded lead wires for easy handling
* Best comfort of the patient as well as the best connection with the ear lobe
